Metallurgical Microscope
Metallurgical Microscope
Metallurgical Microscope

Product model:ICX41M Series
Createdate:2019-7-25 15:32:52
Hits:95

Metallurgical Microscope-Metallurgical Microscope

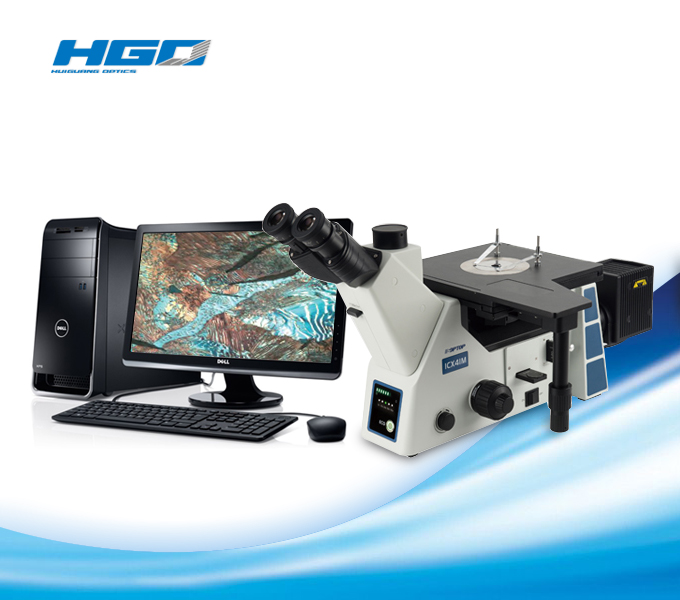

Introduction To ICX41M Inverted Metallurgical Microscope

ICX41M with new designed infinity opticalsystem, can be applied for industry research as forging, smelting, heattreatment, and inspection of raw material.

● Comfortable and simple operation

Low positionoperating knobs 360 degree rotatable viewing head, according with ergonomicaldesign, reduce the fatigue from long-time use.

Stable frame with outstanding design
Metal castingframe with corrosion and wear resistance technology, ensures a solid anddurable microscope.Built-in magnet for hexagonal wrench keeping, small designsare the most practical.

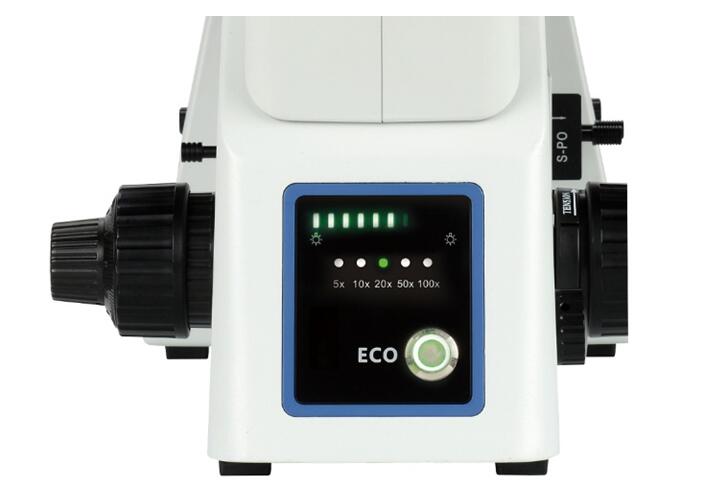

Front magnification display
With built-insensor in nosepiece, the objective magnification on using is visible from thefront plate.

Intelligent ECO system
Withenvironmental and economic ECO infrared sensing system, the microscope ispreset to be shutdown when there is no operator within limited time.

For different observation

Supporting forbright field, dark field, polarizing and differential interference contrast,ICX41M is applied for different researches.


Technical specifications

Optical system

Infinity color  correct optical system

Viewing head

45 degree  inclined trinocular viewing head, 360 degree rotatable; interpupillary  distance 50-75mm, binocular:trinocular=100:0 or 0:100

Eyepiece

High eye point  wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle  attachable

High eye point  wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle  attachable

Objective

Long working  distance plan achromatic metallurgical objectives 5X, 10X, 20X, 50X, 100X

Long working  distance bright & dark field plan achromatic metallurgical objectives 5X,  10X, 20X, 50X, 100X

Nosepiece

Inward quintuple  bright field nosepiece (DIC slot), with built-in magnification sensor

Inward  quintuple bright & dark field nosepiece (DIC slot), withbuilt-in  magnification sensor

Frame

Reflected  frame low-position coaxial focusing system, coarse range 9mm (up 6.5mm, down  2.5mm), fine precision 0.002mm with upper limit and tension adjustment; with  switch for bright and dark field; with variable field diaphragm and aperture

diaphragm,  both center adjustable; with slots for filters and polarizing kit; with light  intensity indicator; with infrared induction; with magnification display

Illumination

External power  adapter, input 100V-240V, output 15V13.4A, lightintensity adjustable

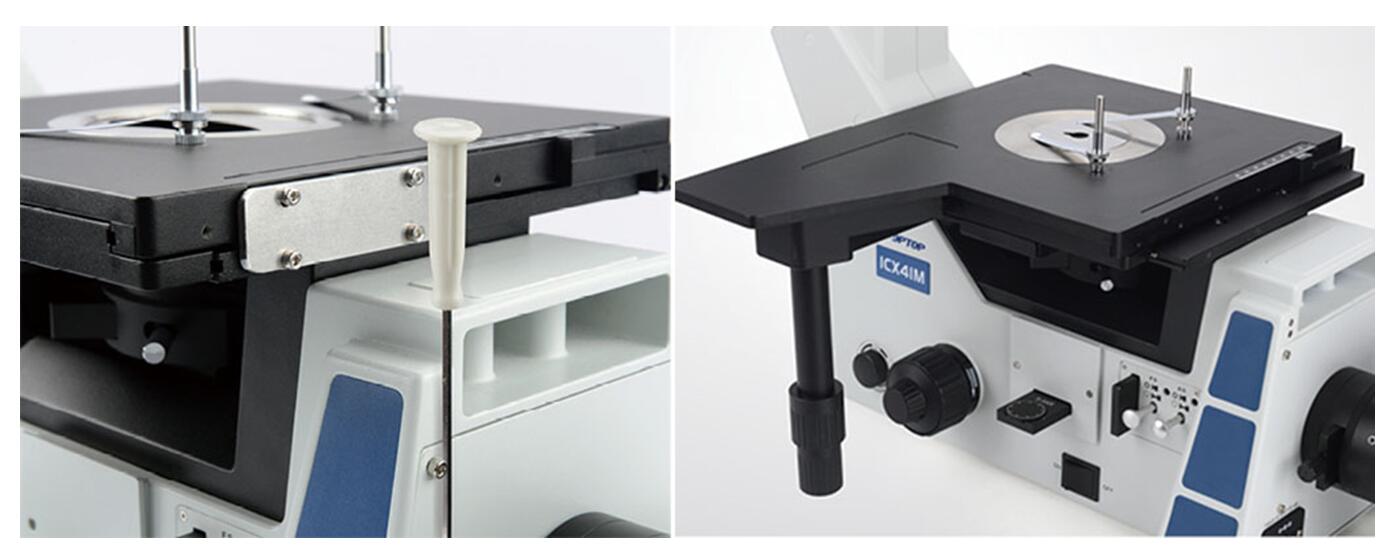

Stage

Three layers  rackless stage, size: 240mm (W) X 250mm (L), moving range: 50X 50mm;  low-position handle knob

Camera adapter

0.35X, 0.5X,  0.65X, 1X focusing C-mount

Others

Polarizer,  fixed analyzer, 360 degree rotatable analyzer, DIC attachment, filters, high  precision micrometer
