Automotive Weld Measurement System
Automotive Weld Measurement System

Createdate:2019-8-21 9:36:46
Hits:87

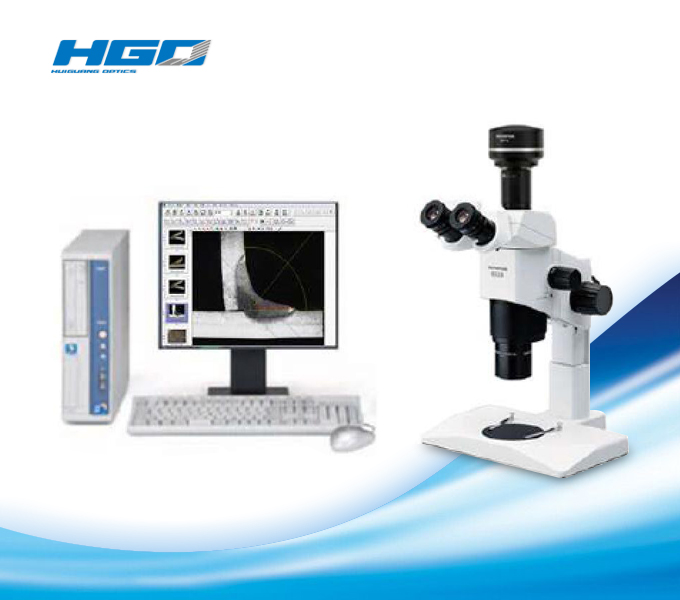

Automotive Weld Measurement Systemintroduce

IMEXT Weld is a system tailored for automotive weld measurement. Supports avariety of welding seam penetration measurement standards such asMercedes-Benz/BMW/Volkswagen; special welding arc auxiliary tools; supportsweld seam batch photographing, batch labeling, batch measurement, fast saving;supports intelligent Excel report output function, realizes “high-volume Weld seam → measurement parameters → image synthesis → dedicated report → quality control statistics dataflow automation; support All inOne and One to One mode.

IMEXT WELD is a system based on the IMEXT platform.The IMEXT platform is a powerful image analysis platform based on multi-imageprocessing. It integrates image acquisition, image processing, measurement andanalysis, and customizable reporting to greatly improve work efficiency. IMEXTWELD has a powerful weld measurement function and basic image processinganalysis functions of the IMEXT platform: EFI, MIA, image enhancement, scratchremoval, automatic particle edge finding, etc.

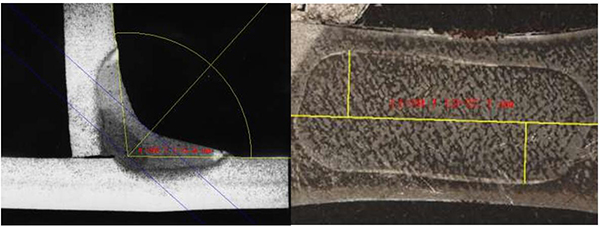

1、A variety of weldingprofessional measuring tools

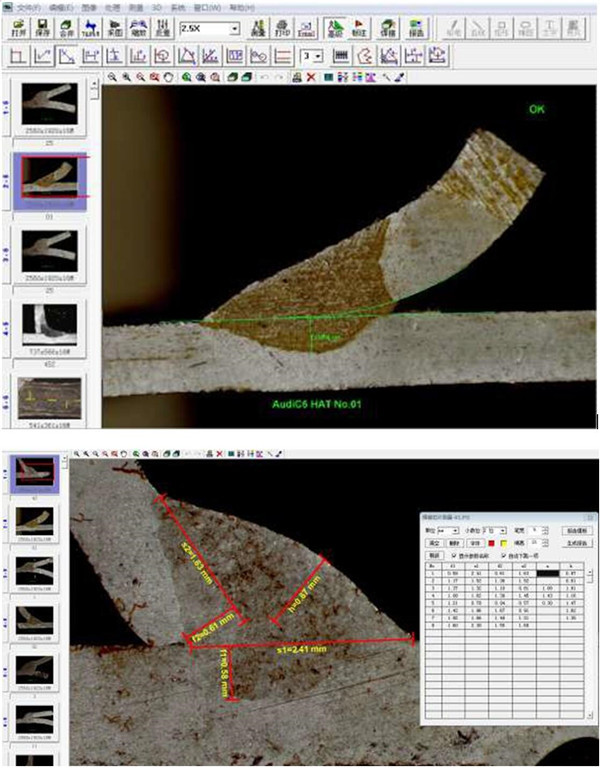

Supports a variety of welding depth measurementstandards such as Mercedes-Benz / BMW / Volkswagen. A variety of measurementtools are available, and measurements can be used to measure differentpenetration types. Depth measurement, A dimension measurement, weld core doublevertical measurement, etc.

2、Welding professional aids

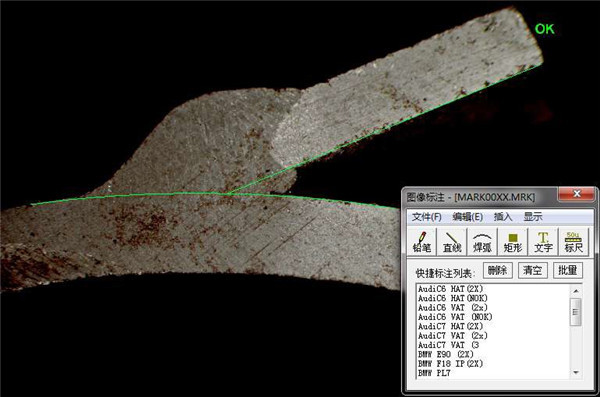

A special welding aid can easily simulate theoriginal shape of the workpiece surface. Supports linear simulation and arcsimulation to make penetration measurement more accurate and convenient.Support for parallel reference lines.

3、Powerful batch mode

Supportweld seam batch photographing, batch labeling, batch measurement, and faststorage. Greatly improved operational efficiency

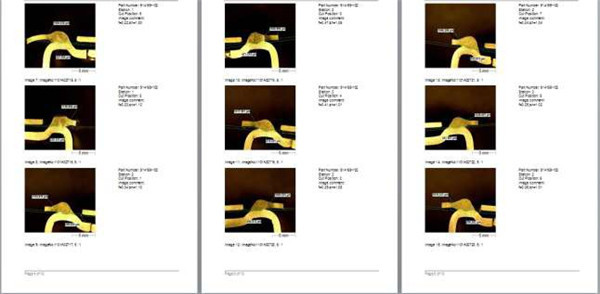

4、Personalized intelligent report output

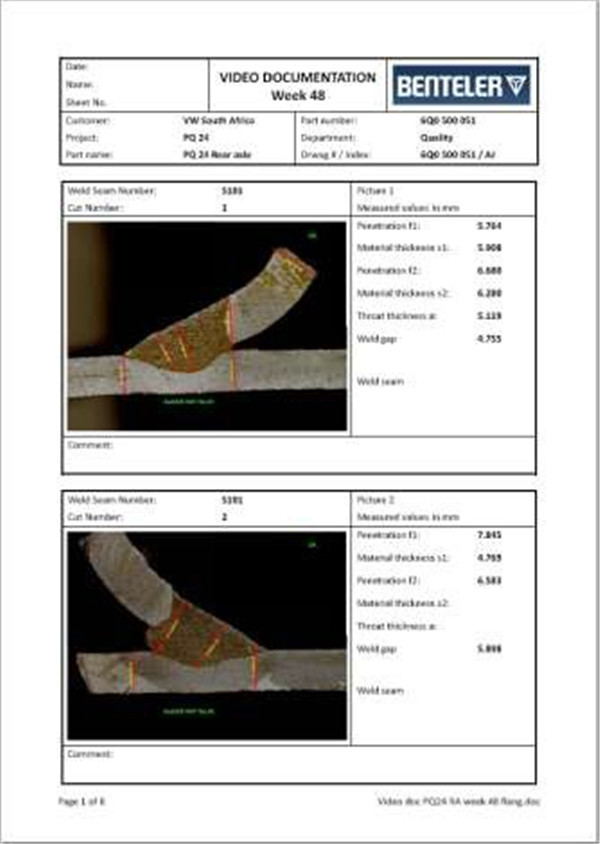

Supports All in One mode output with intelligentselective data output technology. A batch of measurements and weld image areoutput to the same report. The data flow of “workpiece to be tested→measured parameter→special report→quality control statistics”is realized, and a varietyof report styles are realized.

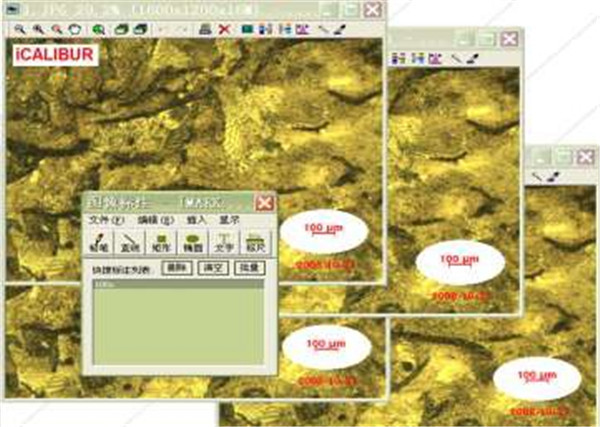

5、Batch image acquisition archive

Realize the process of "real-time preview,fast capture, superimposed ruler, information annotation, identificationmeasurement, analysis and statistics, save archive" inspection process;provide multi-image batch processing functions such as batch photographing,batch labeling, batch saving, batch consolidation, etc. The process is moreconvenient and efficient.

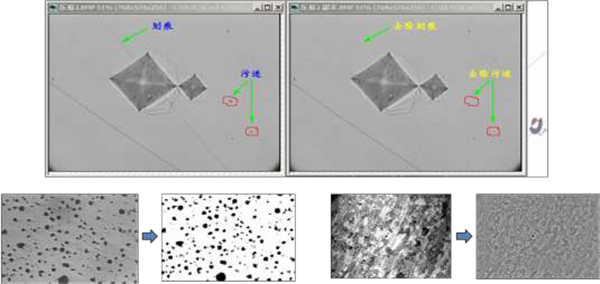

6、Powerful image processing and image correction

Image enhancement, contrast adjustment, colorseparation, multi-channel color synthesis, image correction, scratch smearprocessing; image annotation, layer merging, image database; convenient rulertool.

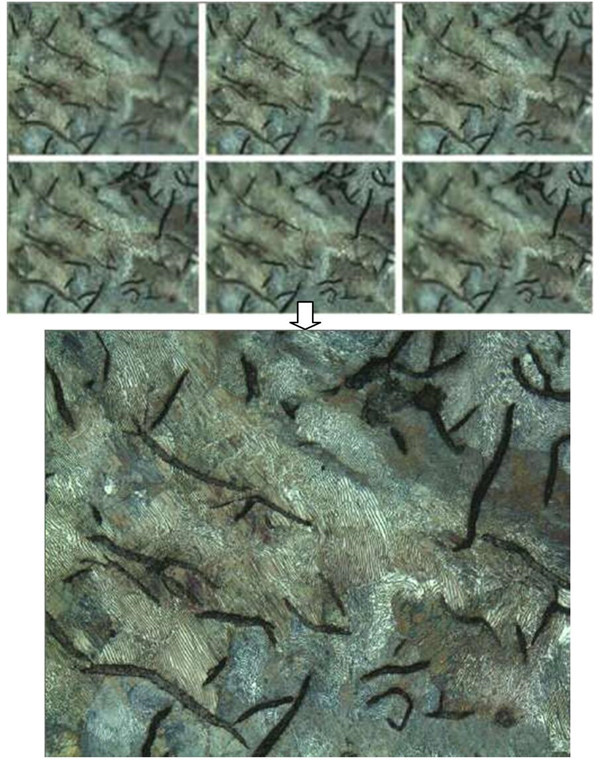

7、Super Depth of Field Observation (EFI)

Powerful depth of field extension(EFI), which breaks through the depth of field limitations of opticalmicroscopes to achieve full field of view clear images; supports stereoscopicoffset correction (offsetEFI)

8、 Body offset correction depth of fieldobservation(OffsetEFI)

For the special optical path of the stereoscopicmirror, the system automatically corrects the offset phenomenon in the stereoimaging to ensure the best effect of depth of field expansion.

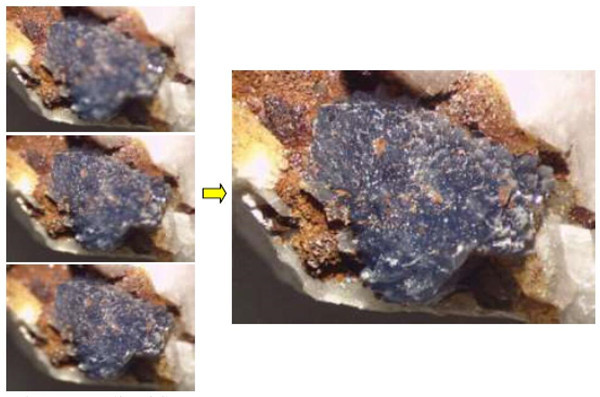

9、Large Field of View Image Acquisition (MIA)

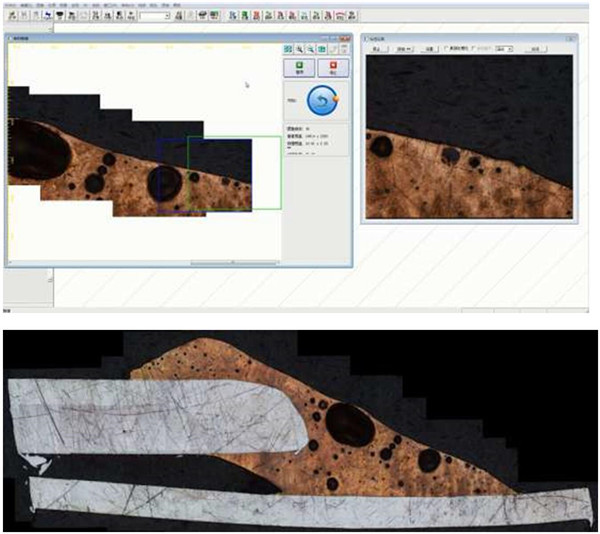

Automatic image stitching(MIA), which expands the field of view of the microscope to obtain a smooth, over-largefield of view


10、Smart aid

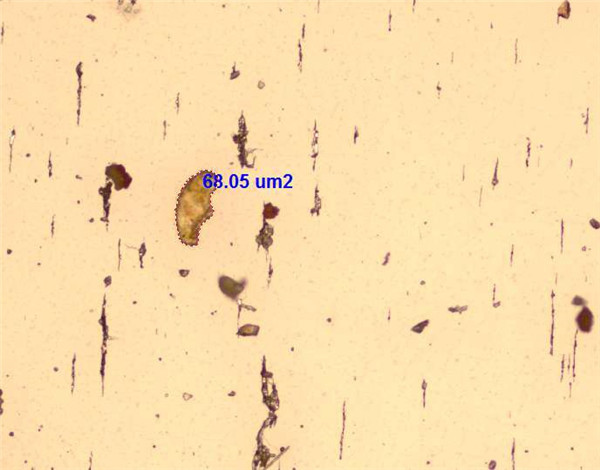

The wand tool automaticallyrecognizes particles and color straws to automatically recognize colors.

11、Professional fixed andfield setting function

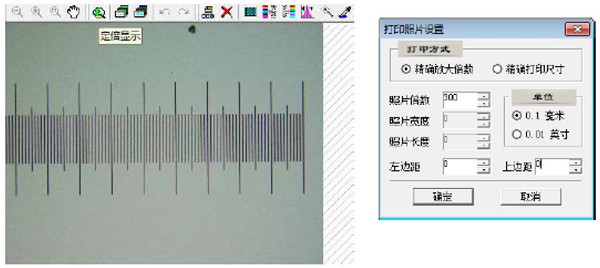

Real-time zoom preview, screen zoom display, fixedphoto print, fixed file save, fixed insertion report, fixed insertion intoWord/Excel, etc. Photos and reports of the corresponding multiples can beautomatically obtained based on inspection criteria and user settings. Such as75X, 300X, 400X, etc.

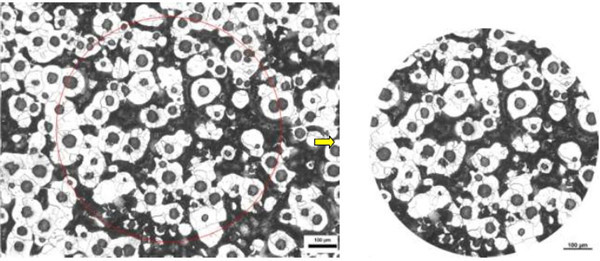

Multiple mode field setting/cropping tools:rectangular area, circular area, elliptical area, arbitrary shape area;arbitrary field size, fixed photo size, fixed sample size. Such as: standard80mm circular field of view, 0.5mm2 standard field of view in inclusion detection


12、Real-timeimage stitching(Optionalmodule)

Intelligent real-time image stitching (LiveMIA),perfect operating experience, breaking the horizon limit. As long as the stageis moved, the system automatically records the scanned area and automaticallytakes a large field of view image without taking a picture.
